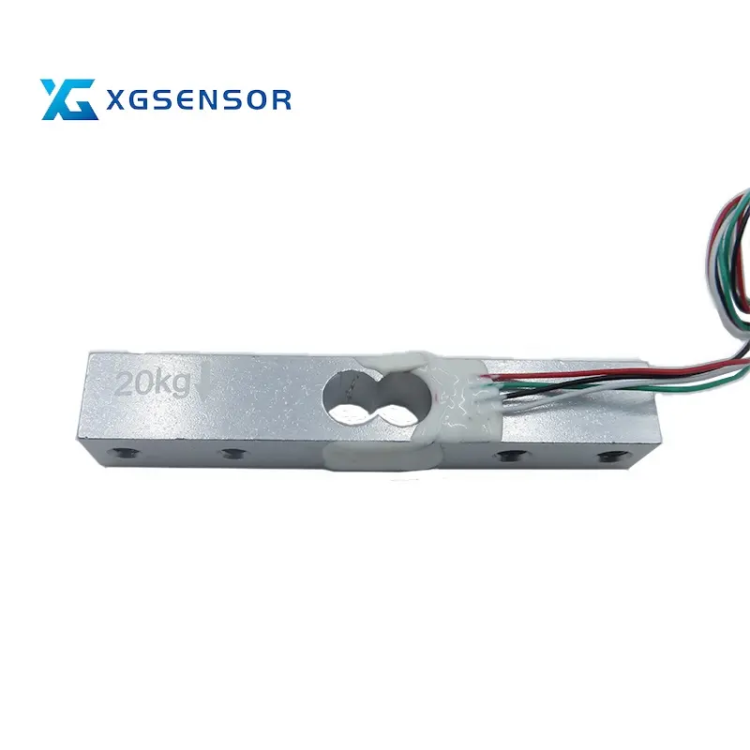

Single Point Load Cells are widely used in weighing systems such as platform scales,packaging machines,and retail checkouts.However,one of the most common causes of sensor failure is overload damage.When a load cell is exposed to excessive weight beyond its rated capacity,the internal strain gauges and mechanical structure may deform permanently,leading to inaccurate readings or complete malfunction.
To prevent overload damage in Single Point Load Cells,it is essential to design the system with the right safety margin.Always choose a load cell with a capacity at least 20–30%higher than your maximum expected load.This extra margin protects the sensor from unexpected impact loads or uneven weight distribution during operation.
Another important factor is mechanical protection.Installing overload stops or limit bolts can physically restrict movement when the load exceeds the design limit.These mechanical stops absorb excessive force and prevent the load cell from being overstressed.For high-speed or dynamic weighing applications,shock-absorbing mounts or rubber pads can also help reduce sudden force spikes.
Proper installation and alignment are equally critical.Ensure that the load is evenly distributed over the load cell’s surface.Off-center loading can create stress on one side of the sensor,leading to strain imbalance and reduced accuracy over time.Using a rigid and flat mounting base also helps maintain consistent performance.
Environmental factors such as vibration,temperature,and humidity can indirectly contribute to overload stress.For harsh conditions,select Single Point Load Cells with an IP67 or IP68 rating and stainless-steel construction.Regular inspection and recalibration further ensure long-term stability and accuracy.
By combining good mechanical design,proper installation,and preventive maintenance,you can significantly reduce the risk of overload damage in Single Point Load Cells.A well-protected sensor not only extends the system’s lifespan but also ensures reliable and repeatable weight measurements in every application.
